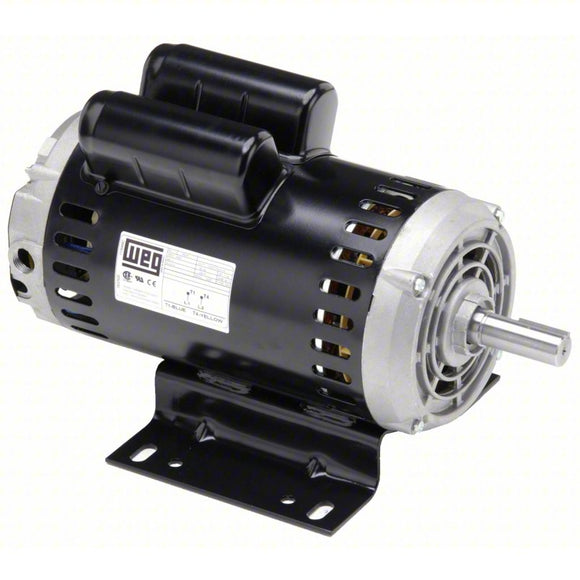

Electric Motors
| Frame | 182/4 |
|---|---|
| Output | 6.4 HP (4.7 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3450 rpm |
| Slip | 4.17 % |
| Rated voltage | 240 V |
| Rated current | 23.0 A |
| L. R. Amperes | 129 A |
| LRC | 5.6x(Code E) |
| No load current | 5.08 A |
| Rated torque | 9.74 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 200 % |
| Locked rotor time | 14s (cold) 8s (hot) |
|---|---|
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Approx. weight³ | 49.6 lb |
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 79.0 | 83.0 | 82.0 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.95 | 0.97 | 0.98 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Manual |
