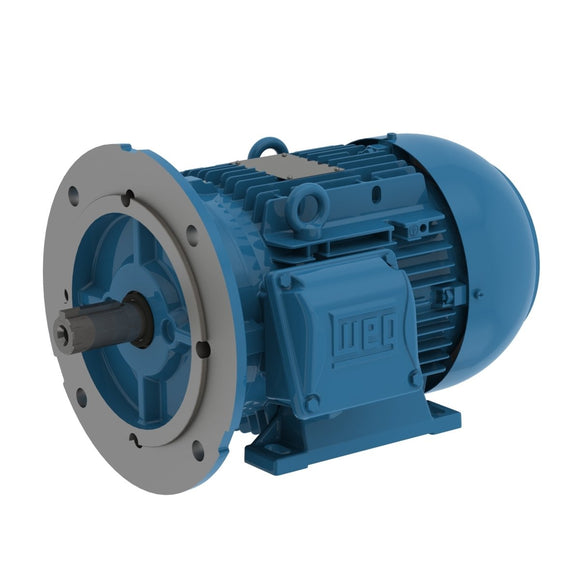

00536ET3YAL132SFF-W22 WEG 7.5HP/5.5kW IEC Tru-Metric Electric Motor, 3600RPM

$1,088.47 USD $1,223.00 USD Save $134.53 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00536ET3YAL132SFF-W2 Barcode: 7909323285060

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 10.5 A
L. R. Amperes 83.0 A
LRC 7.9
No load current 3.75 A
Rated torque 13.3 ft.lb
Locked rotor torque 260 %
Breakdown torque 330 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.5126 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.7  89.7  89.7

Power factor

50% 75% 100%
0.76  0.85  0.89
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2935 rpm
Slip 2.17 %
Rated voltage 400 V
Rated current 10.1 A
L. R. Amperes 87.9 A
LRC 8.7
No load current 4.10 A
Rated torque 13.2 ft.lb
Locked rotor torque 290 %
Breakdown torque 370 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.5126 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.3  89.7  90.0

Power factor

50% 75% 100%
0.72  0.82  0.87
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 10.0 A
L. R. Amperes 93.0 A
LRC 9.3
No load current 4.40 A
Rated torque 13.2 ft.lb
Locked rotor torque 320 %
Breakdown torque 409 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.5126 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.8  89.6  90.1

Power factor

50% 75% 100%
0.68  0.79  0.85
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 460 V
Rated current 8.97 A
L. R. Amperes 86.1 A
LRC 9.6
No load current 3.80 A
Rated torque 11.0 ft.lb
Locked rotor torque 320 %
Breakdown torque 430 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.5126 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 135 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  89.5  89.5

Power factor

50% 75% 100%
0.69  0.80  0.86

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
