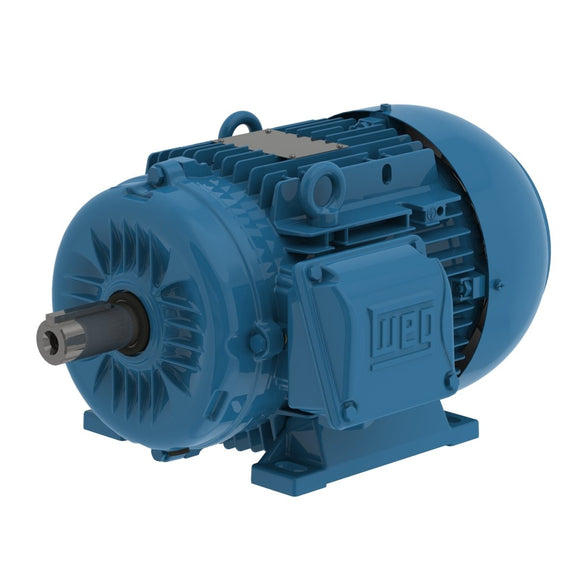

00436ET3EAL112M-W22 WEG 5.5HP/4kW IEC TRU-Metric Electric Motor, 3600RPM

$777.86 USD $874.00 USD Save $96.14 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00436ET3EAL112M-W22 Barcode: 7909323281710

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 7.83 A
L. R. Amperes 60.3 A
LRC 7.7
No load current 2.80 A
Rated torque 9.86 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1898 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 80.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.0  88.2  88.2

Power factor

50% 75% 100%
0.73  0.83  0.88
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 400 V
Rated current 7.59 A
L. R. Amperes 63.8 A
LRC 8.4
No load current 3.10 A
Rated torque 9.81 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1898 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 80.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.0  88.4  88.4

Power factor

50% 75% 100%
0.69  0.80  0.86
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 7.49 A
L. R. Amperes 63.7 A
LRC 8.5
No load current 3.30 A
Rated torque 9.79 ft.lb
Locked rotor torque 280 %
Breakdown torque 380 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1898 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 80.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  88.0  88.4

Power factor

50% 75% 100%
0.65  0.77  0.84
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 230/460 V
Rated current 13.3/6.67 A
L. R. Amperes 127/63.4 A
LRC 9.5
No load current 5.80/2.90 A
Rated torque 8.11 ft.lb
Locked rotor torque 280 %
Breakdown torque 440 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.1898 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 80.1 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.5  87.5  88.5

Power factor

50% 75% 100%
0.67  0.79  0.85

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
