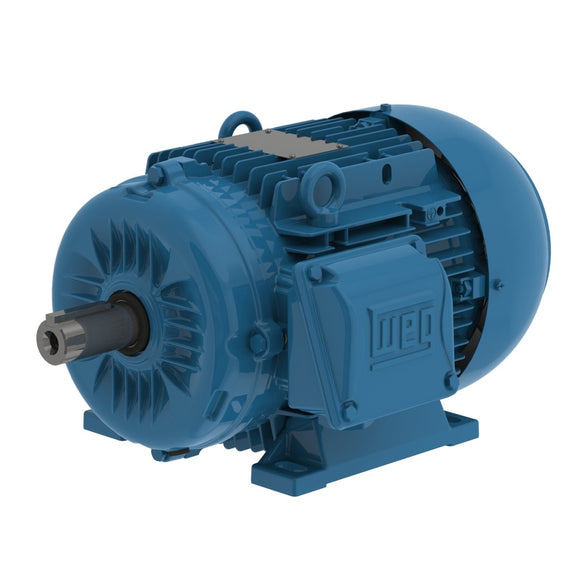

00418ET3YAL112M-W22 WEG 5.5HP/4kW IEC TRU-Metric Electric Motor, 1800RPM

$604.31 USD $679.00 USD Save $74.69 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00418ET3YAL112M-W22 Barcode: 7909323285077

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 8.47 A
L. R. Amperes 59.3 A
LRC 7.0
No load current 4.15 A
Rated torque 19.7 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
89.3  89.0  88.6

Power factor

50% 75% 100%
0.65  0.76  0.81
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 8.20 A
L. R. Amperes 57.4 A
LRC 7.0
No load current 4.60 A
Rated torque 19.7 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.7  89.1  89.1

Power factor

50% 75% 100%
0.60  0.72  0.79
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 8.09 A
L. R. Amperes 56.6 A
LRC 7.0
No load current 4.95 A
Rated torque 19.6 ft.lb
Locked rotor torque 260 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
88.2  88.9  89.3

Power factor

50% 75% 100%
0.57  0.70  0.77
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 7.28 A
L. R. Amperes 58.2 A
LRC 8.0
No load current 4.25 A
Rated torque 16.2 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.7 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
87.5  89.5  89.5

Power factor

50% 75% 100%
0.58  0.70  0.77

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
