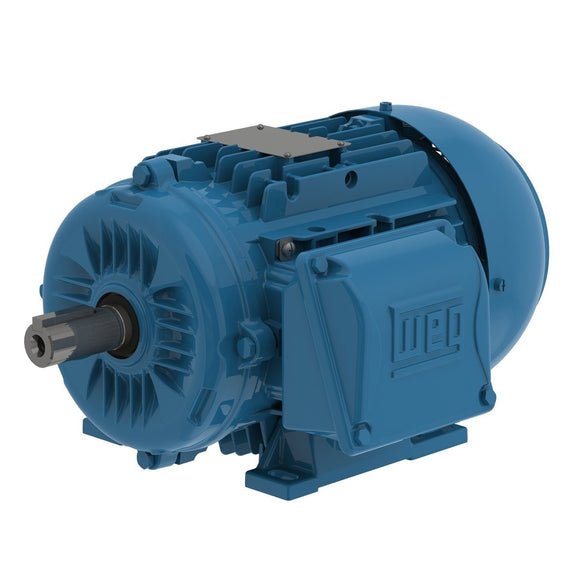

00159ET3YAL112M-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 900RPM

$890.89 USD $1,001.00 USD Save $110.11 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00159ET3YAL112M-W22 Barcode: 7909323285176

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 112M
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 700 rpm
Slip 6.67 %
Rated voltage 380 V
Rated current 4.02 A
L. R. Amperes 20.1 A
LRC 5.0
No load current 2.40 A
Rated torque 14.8 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.5648 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 46.0 dB(A)
Approx. weight³ 84.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
79.0  79.5  79.8

Power factor

50% 75% 100%
0.49  0.63  0.71
Frame 112M
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 705 rpm
Slip 6.00 %
Rated voltage 400 V
Rated current 3.96 A
L. R. Amperes 19.8 A
LRC 5.0
No load current 2.60 A
Rated torque 14.7 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.5648 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 46.0 dB(A)
Approx. weight³ 84.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
79.0  80.5  80.5

Power factor

50% 75% 100%
0.45  0.59  0.68
Frame 112M
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 710 rpm
Slip 5.33 %
Rated voltage 415 V
Rated current 3.97 A
L. R. Amperes 21.0 A
LRC 5.3
No load current 2.80 A
Rated torque 14.6 ft.lb
Locked rotor torque 280 %
Breakdown torque 290 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.5648 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 46.0 dB(A)
Approx. weight³ 84.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.9  80.2  80.8

Power factor

50% 75% 100%
0.42  0.56  0.65
Frame 112M
Output 2 HP (1.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 865 rpm
Slip 3.89 %
Rated voltage 460 V
Rated current 3.50 A
L. R. Amperes 20.7 A
LRC 5.9
No load current 2.45 A
Rated torque 12.0 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 68s (cold) 38s (hot)
Moment of inertia (J) 0.5648 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 50.0 dB(A)
Approx. weight³ 84.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.0  80.0  84.0

Power factor

50% 75% 100%
0.44  0.57  0.64

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
