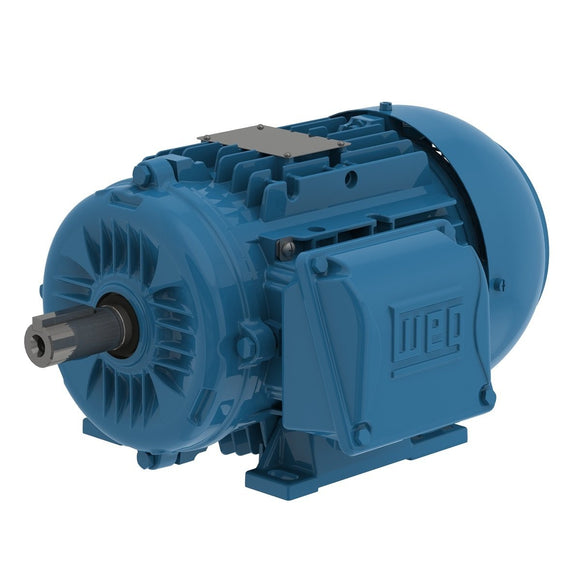

00158ET3WAL90L-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 1800RPM

$466.36 USD $524.00 USD Save $57.64 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00158ET3WAL90L-W22 Barcode: 7909323282861

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 220/380 V
Rated current 5.56/3.22 A
L. R. Amperes 36.2/20.9 A
LRC 6.5
No load current 2.94/1.70 A
Rated torque 7.20 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1566 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 45.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
85.0  85.3  85.3

Power factor

50% 75% 100%
0.63  0.75  0.83
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 230/400 V
Rated current 5.50/3.16 A
L. R. Amperes 38.5/22.1 A
LRC 7.0
No load current 3.13/1.80 A
Rated torque 7.17 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1566 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 45.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
84.0  85.5  85.6

Power factor

50% 75% 100%
0.58  0.72  0.80
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 240/415 V
Rated current 5.48/3.17 A
L. R. Amperes 41.1/23.8 A
LRC 7.5
No load current 3.46/2.00 A
Rated torque 7.15 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.1566 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 45.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.1  85.0  85.6

Power factor

50% 75% 100%
0.54  0.68  0.77
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 2.83 A
L. R. Amperes 23.5 A
LRC 8.3
No load current 1.68 A
Rated torque 5.90 ft.lb
Locked rotor torque 310 %
Breakdown torque 390 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.1566 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 45.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  85.5  86.5

Power factor

50% 75% 100%
0.55  0.68  0.77

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM25x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
