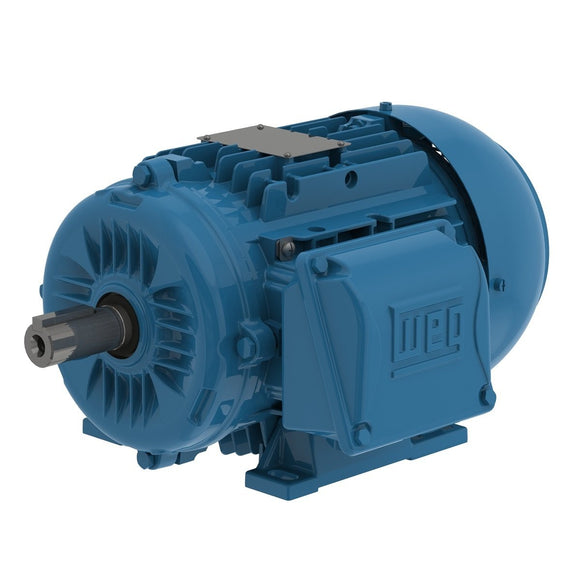

00156ET3WAL90S-W22 WEG 2HP/1.5kW IEC TRU-Metric Electric Motor, 3600RPM

$448.56 USD $504.00 USD Save $55.44 USD

Shipping calculated at checkout

WEG Electric Corporation SKU: 00156ET3WAL90S-W22 Barcode: 7909323283011

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Electric Motors

Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2860 rpm
Slip 4.67 %
Rated voltage 220/380 V
Rated current 5.49/3.18 A
L. R. Amperes 41.7/24.2 A
LRC 7.6
No load current 2.25/1.30 A
Rated torque 3.62 ft.lb
Locked rotor torque 290 %
Breakdown torque 290 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 39.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.7  85.0  84.4

Power factor

50% 75% 100%
0.69  0.80  0.85
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2875 rpm
Slip 4.17 %
Rated voltage 230/400 V
Rated current 5.34/3.07 A
L. R. Amperes 41.1/23.6 A
LRC 7.7
No load current 2.61/1.50 A
Rated torque 3.60 ft.lb
Locked rotor torque 330 %
Breakdown torque 330 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 39.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
83.0  85.0  85.0

Power factor

50% 75% 100%
0.64  0.76  0.83
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2885 rpm
Slip 3.83 %
Rated voltage 240/415 V
Rated current 5.29/3.06 A
L. R. Amperes 42.3/24.5 A
LRC 8.0
No load current 2.94/1.70 A
Rated torque 3.59 ft.lb
Locked rotor torque 360 %
Breakdown torque 360 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 39.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.2  84.8  85.2

Power factor

50% 75% 100%
0.59  0.72  0.80
Frame 90S/L
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 460 V
Rated current 2.69 A
L. R. Amperes 25.3 A
LRC 9.4
No load current 1.38 A
Rated torque 2.97 ft.lb
Locked rotor torque 409 %
Breakdown torque 440 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.0475 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 39.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
80.0  82.5  85.5

Power factor

50% 75% 100%
0.64  0.75  0.82

Features

Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM25x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
